Top plates Ø120 and Ø170 with a syringe socket
What round plate has a syringe socket? · Hardware · basis: Senft LTD gamma layout, sized in the assembled Ø100 engine on this site; syringe socket at the 10 mL barrel OD Ø15.9; rod bore at the 2 mm rod; M3 clearance Ø3.4 (ISO 273), M3 tap drill Ø2.5
Also called: coffee cup stirling top plate, ltd stirling plate dimensions, ltd stirling syringe mount, low temperature stirling top plate stl
Long Earth Society build part. The warm-hand demonstrator. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 2 in table
Notes
- The cold plate of the LTD engine and its power cylinder mount. Ø120 (for the 100 chamber) or Ø170 (for the 150 chamber), 3 thick, with 6 × Ø3.4 on a Ø112 / Ø162 circle (at 30°, 90°, …) matching the chamber ring.
- At x −5 a Ø20 boss, 13 tall with the plate, has a Ø2 bore straight through for the 2 mm displacer rod (fit: run); the bore is the rod guide.
- At x 40 (45 from the rod guide, so the two con-rods can sit at the two ends of the crankshaft) a Ø21.9 boss rises to 20 mm with a Ø15.9 socket from 8 to 20 for a 10 mL syringe barrel (fit: socket) and a Ø10 port under it into the chamber: the barrel's closed end sits on the socket floor and its Luer tip ends flush with the plate's underside.

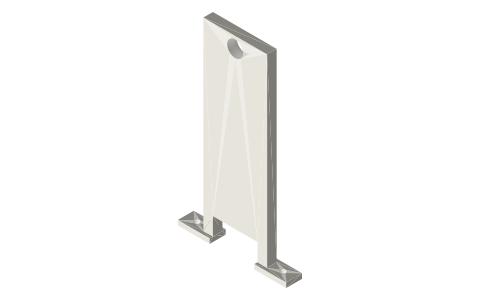

- Four Ø9 × 4 pads at (7.5, ±27) and (27.5, ±27) carry the two crank stands, each with an M3 tapped hole (Ø2.5) 6 deep.
Top plates Ø120 and Ø170 with a syringe socket size chart
| file | plate | screw circle | rod guide | syringe socket | height |
|---|---|---|---|---|---|
| ltd-100-top-plate-syringe | Ø120 × 3 | 112 | Ø2 × 13 at x −5 | Ø15.9 × 12 at x 40 | 20 |
| ltd-150-top-plate-syringe | Ø170 × 3 | 162 | Ø2 × 13 at x −5 | Ø15.9 × 12 at x 40 | 20 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| syringe socket | Ø15.9 | 10 mL syringe barrel | socket | ltd-100-top* |
| syringe socket | Ø15.9 | 10 mL syringe barrel | socket | ltd-150-top* |
| plate screw holes | Ø3.4 | M3 screw clearance (ISO 273) | designed | ltd-100-top* |
| plate screw holes | Ø3.4 | M3 screw clearance (ISO 273) | designed | ltd-150-top* |
| stand pad holes | Ø2.5 × 6 | M3 tap drill | designed | ltd-100-top* |
| stand pad holes | Ø2.5 × 6 | M3 tap drill | designed | ltd-150-top* |
| syringe port under the socket | Ø10 | syringe tip (no contact) | designed | ltd-100-top* |
| syringe port under the socket | Ø10 | syringe tip (no contact) | designed | ltd-150-top* |
| rod-guide bore | Ø2 × 13 | 2 mm displacer rod | run | ltd-100-top-plate-* |
| rod-guide bore | Ø2 × 13 | 2 mm displacer rod | run | ltd-150-top-plate-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Wikipedia | Stirling engine | web | CC BY-SA 4.0 (text) |
| James R. Senft | An Introduction to Low Temperature Differential Stirling Engines | book | Moriya Press verify |
| Long Earth Society | Engine builds | web, video | LES site |
Free files
★ Free files 2 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| ltd-100-top-plate-syringe | top plate Ø120 × 3: rod guide boss at x -5 (Ø2 bore, 13 long through plate and Ø20 boss), 10 mL syringe socket at x 40 (Ø15.9 from 8 to 20 above the underside, Ø10 port below so the Luer tip ends flush), 4 stand pads Ø9 × 4 with M3 tapped holes 6 deep, 6 × Ø3.4 on a Ø112 circle | STEP · STL |
| ltd-150-top-plate-syringe | top plate Ø170 × 3: rod guide boss at x -5 (Ø2 bore, 13 long through plate and Ø20 boss), 10 mL syringe socket at x 40 (Ø15.9 from 8 to 20 above the underside, Ø10 port below so the Luer tip ends flush), 4 stand pads Ø9 × 4 with M3 tapped holes 6 deep, 6 × Ø3.4 on a Ø162 circle | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=round-top-plates-syringe-socket

How it fits

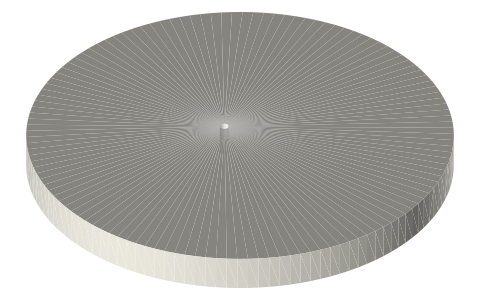

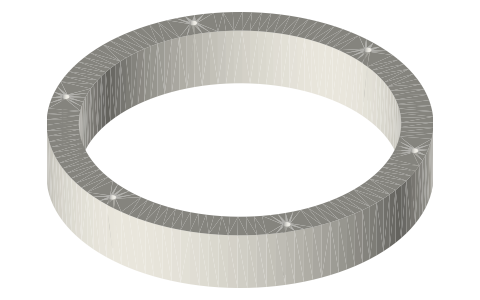

Parts that fit it
Goes in or on
Connects to
Also needed
You might also need
Questions
How does the displacer rod pass through an LTD top plate?
Through a Ø2 bore straight through the plate and its Ø20 centre boss, 13 long, drawn at the 2 mm rod (fit: run).
What syringe fits the LTD top plate?
A 10 mL barrel (Ø15.9 OD) in the 12 mm deep socket; its Luer tip sits in the Ø10 port below and ends flush with the plate's underside.
